ets_init.f90 File Reference

Go to the source code of this file.

Functions/Subroutines
subroutine	ets_init (COREPROF_IN, EQUILIBRIUM_IN, CORESOLVER_IN, COREPROF_OUT, EQUILIBRIUM_OUT, CORESOLVER_OUT, SOLVER_INDEX, Activate_Edge_Workflow, codeparameters, user_out_outputFlag, user_out_diagnosticInfo)
	The ETS_INIT returns an instance of the IDS core_profiles, COREPROF_OUT, IDS equilibrium, EQUILIBRIUM_OUT, and the IDS transport_solver_numerics, CORESOLVER_OUT, that enable you to run the ::transport-solver, as well as the flag Activate_Edge_Workflow that should be used to activate the EDGE sub-workflows in the ETS_WORKFLOW_IMAS.xml. More...
subroutine	assign_run_settings (codeparam_string, COMPOSITION, PROFILES, IMPURITY, GRID_SETTINGS, RESTRICTIONS, Activate_Edge_Workflow)
	Parse the input xml, codeparam_string, and use the content to fill the output COMPOSITION, PROFILES, IMPURITY and Activate_Edge_Workflow. More...
subroutine	validate_equation (coreprof_in, profiles, grid_settings, solver_index, output_flag, output_message)
	Verify that the boundary conditions are set up correctly. In particular, check that whenever you are predicting any density equation, then quasi-neutrality is set for at least one plasma species (ions or electrons). More...
subroutine	validate_profiles (COREPROF_IN, OUTPUT_FLAG, OUTPUT_MESSAGE)
subroutine	validate_equilibrium (EQUILIBRIUM_IN, OUTPUT_FLAG, OUTPUT_MESSAGE)
subroutine	init_ids (COMPOSITION_OUT, GRID_SETTINGS, COREPROF_IN, EQUILIBRIUM_IN, COREPROF_OUT, EQUILIBRIUM_OUT, PROFILES, RESTRICTIONS, OUTPUT_FLAG, OUTPUT_MESSAGE)
subroutine	setup_grid (GRID_SETTINGS, COREPROF_IN, RHO_TOR_NORM)
subroutine	update_equations (PROFILES, COREPROF, EQUILIBRIUM)
subroutine	update_bc (RHO, PROF, BND_TYPE, BND_RHO, BND_VALUE)
subroutine	commit_run_settings (COMPOSITION, PROFILES, IMPURITY, COREPROF, CORESOLVER, user_out_outputFlag, user_out_diagnosticInfo)
subroutine	fill_bc (IEQ, EQUATION, ION_INDEX, STATE_INDEX, TYPE, COEFF_INNER, COEFF_OUTER, POSITION, CORESOLVER)

Function/Subroutine Documentation

subroutine ets_init::assign_run_settings	(	character(len=132), dimension(:), intent(in), pointer	codeparam_string,
		type (plasma_composition), intent(out)	COMPOSITION,
		type (plasma_profiles), intent(out)	PROFILES,
		type (impurity_profiles), intent(out)	IMPURITY,
		type(type_grid_settings), intent(out)	GRID_SETTINGS,
		type (profile_restrictions), intent(out)	RESTRICTIONS,
		integer, intent(out)	Activate_Edge_Workflow
	)

Parse the input xml, codeparam_string, and use the content to fill the output COMPOSITION, PROFILES, IMPURITY and Activate_Edge_Workflow.

Definition at line 186 of file ets_init.f90.

References ets_plasma::allocate_composition(), ets_plasma::allocate_impurity_profiles(), and ets_plasma::allocate_plasma_profiles().

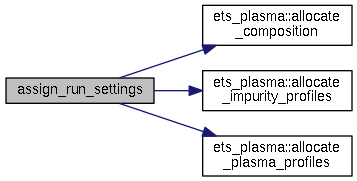

Here is the call graph for this function:

subroutine ets_init::commit_run_settings	(	type (plasma_composition)	COMPOSITION,
		type (plasma_profiles)	PROFILES,
		type (impurity_profiles)	IMPURITY,
		type (ids_core_profiles), intent(inout)	COREPROF,
		type (ids_transport_solver_numerics), intent(inout)	CORESOLVER,
		integer (ids_int), intent(out)	user_out_outputFlag,
		character (len=:), intent(inout), pointer	user_out_diagnosticInfo
	)

Definition at line 1597 of file ets_init.f90.

References allocate_working_ids::allocate_coresolver_ids(), coronal::coronal_distribution(), fill_bc(), get_composition::find_impurity(), get_composition::find_ion(), get_composition::get_prof_composition(), and control_parameters::init_control_parameters().

Referenced by ets_init().

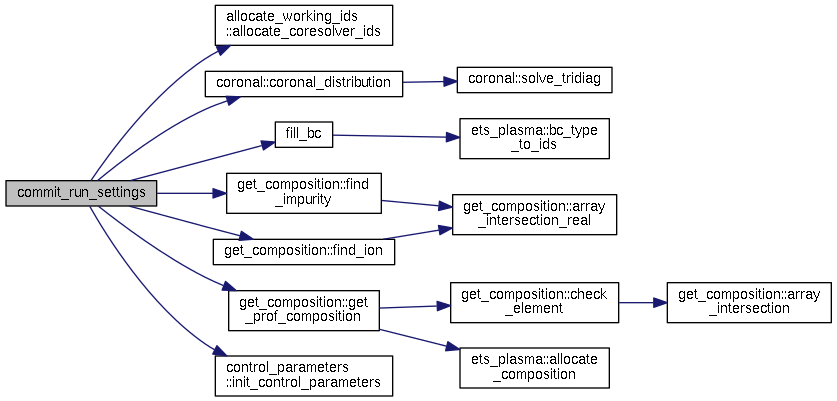

Here is the call graph for this function:

Here is the caller graph for this function:

subroutine ets_init	(	type (ids_core_profiles), intent(in)	COREPROF_IN,
		type (ids_equilibrium), intent(in)	EQUILIBRIUM_IN,
		type (ids_transport_solver_numerics), intent(in)	CORESOLVER_IN,
		type (ids_core_profiles), intent(out)	COREPROF_OUT,
		type (ids_equilibrium), intent(out)	EQUILIBRIUM_OUT,
		type (ids_transport_solver_numerics), intent(out)	CORESOLVER_OUT,
		integer, intent(in)	SOLVER_INDEX,
		integer (ids_int), intent(out)	Activate_Edge_Workflow,
		type (ids_parameters_input), intent(in)	codeparameters,
		integer (ids_int), intent(out)	user_out_outputFlag,
		character(len=:), intent(out), pointer	user_out_diagnosticInfo
	)

The ETS_INIT returns an instance of the IDS core_profiles, COREPROF_OUT, IDS equilibrium, EQUILIBRIUM_OUT, and the IDS transport_solver_numerics, CORESOLVER_OUT, that enable you to run the ::transport-solver, as well as the flag Activate_Edge_Workflow that should be used to activate the EDGE sub-workflows in the ETS_WORKFLOW_IMAS.xml.

The values in COREPROF_OUT are based on data in COREPROF_IN. However, the plasma composition (ion and impurity species) is set up as requested in the xml-input, supplied in codeparametersparameters_input. Important missing fields are infered from EQUILIBRIUM_IN.

The CORESOLVER_OUT and the Activate_Edge_Workflow are created from the values in codeparametersparameters_input.

Developers:   D.Kalupin, T.Jonsson, J.Ferreira
Contacts:     Denis.Kalupin@euro-fusion.org

Definition at line 22 of file ets_init.f90.

References assign_run_settings(), commit_run_settings(), init_ids(), ids_sanitiser::sanitise_idss(), update_equations(), validate_equation(), validate_equilibrium(), and validate_profiles().

Referenced by run_test().

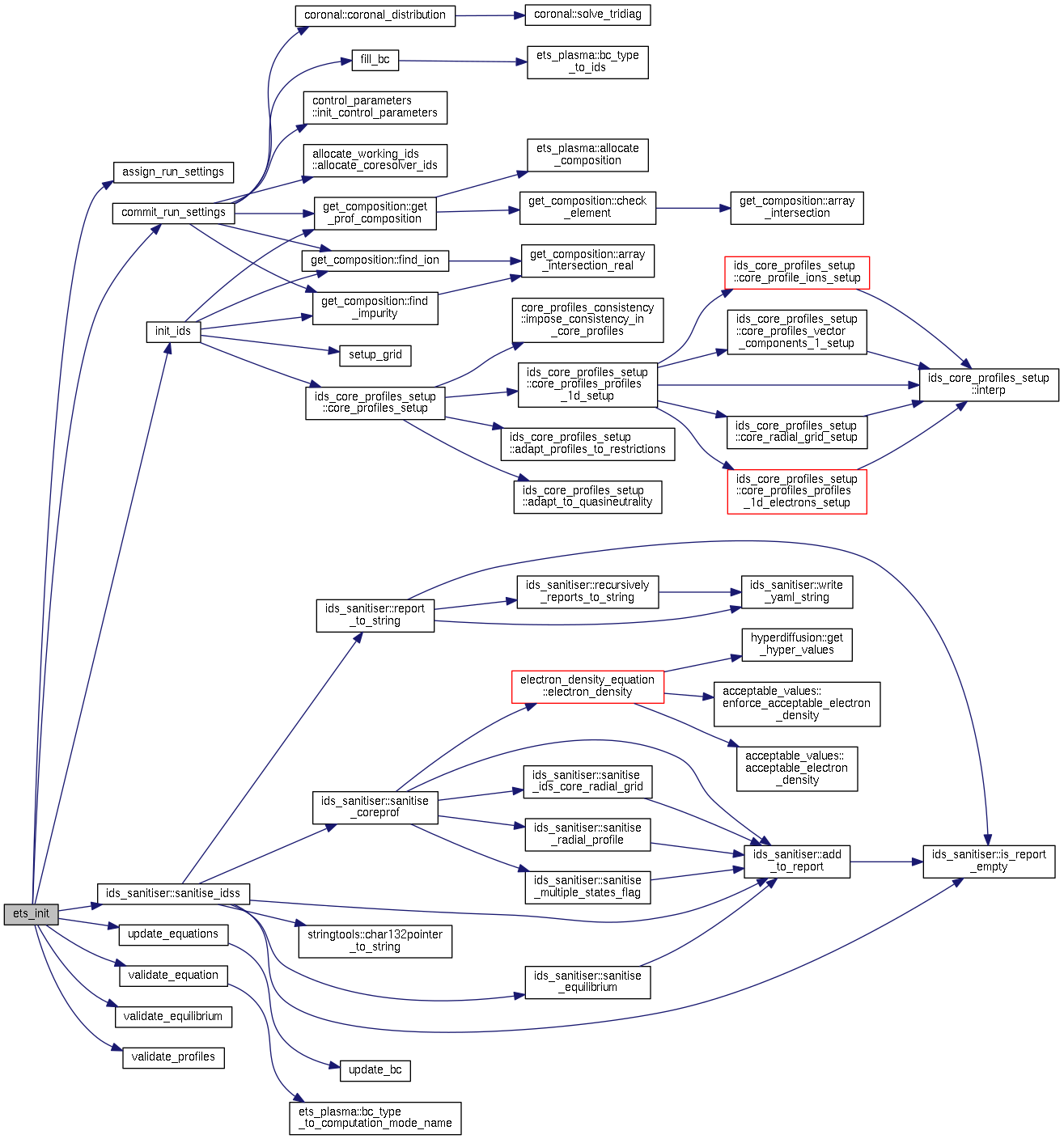

Here is the call graph for this function:

Here is the caller graph for this function:

subroutine ets_init::fill_bc	(	integer (ids_int)	IEQ,
		character (len=ids_string_length)	EQUATION,
		integer (ids_int)	ION_INDEX,
		integer (ids_int)	STATE_INDEX,
		integer (ids_int), dimension(2)	TYPE,
		real (ids_real), dimension(3)	COEFF_INNER,
		real (ids_real), dimension(3)	COEFF_OUTER,
		real (ids_real), dimension(2)	POSITION,
		type (ids_transport_solver_numerics)	CORESOLVER
	)

Definition at line 1879 of file ets_init.f90.

References ets_plasma::bc_type_to_ids().

Referenced by commit_run_settings().

Here is the call graph for this function:

Here is the caller graph for this function:

subroutine ets_init::init_ids	(	type (plasma_composition), intent(in)	COMPOSITION_OUT,
		type (type_grid_settings), intent(in)	GRID_SETTINGS,
		type (ids_core_profiles), intent(in)	COREPROF_IN,
		type (ids_equilibrium), intent(in)	EQUILIBRIUM_IN,
		type (ids_core_profiles), intent(out)	COREPROF_OUT,
		type (ids_equilibrium), intent(out)	EQUILIBRIUM_OUT,
		type (plasma_profiles), intent(in)	PROFILES,
		type(profile_restrictions), intent(in)	RESTRICTIONS,
		integer, intent(inout)	OUTPUT_FLAG,
		character(*), intent(inout)	OUTPUT_MESSAGE
	)

Definition at line 1222 of file ets_init.f90.

References ids_core_profiles_setup::core_profiles_setup(), get_composition::find_impurity(), get_composition::find_ion(), get_composition::get_prof_composition(), and setup_grid().

Referenced by ets_init().

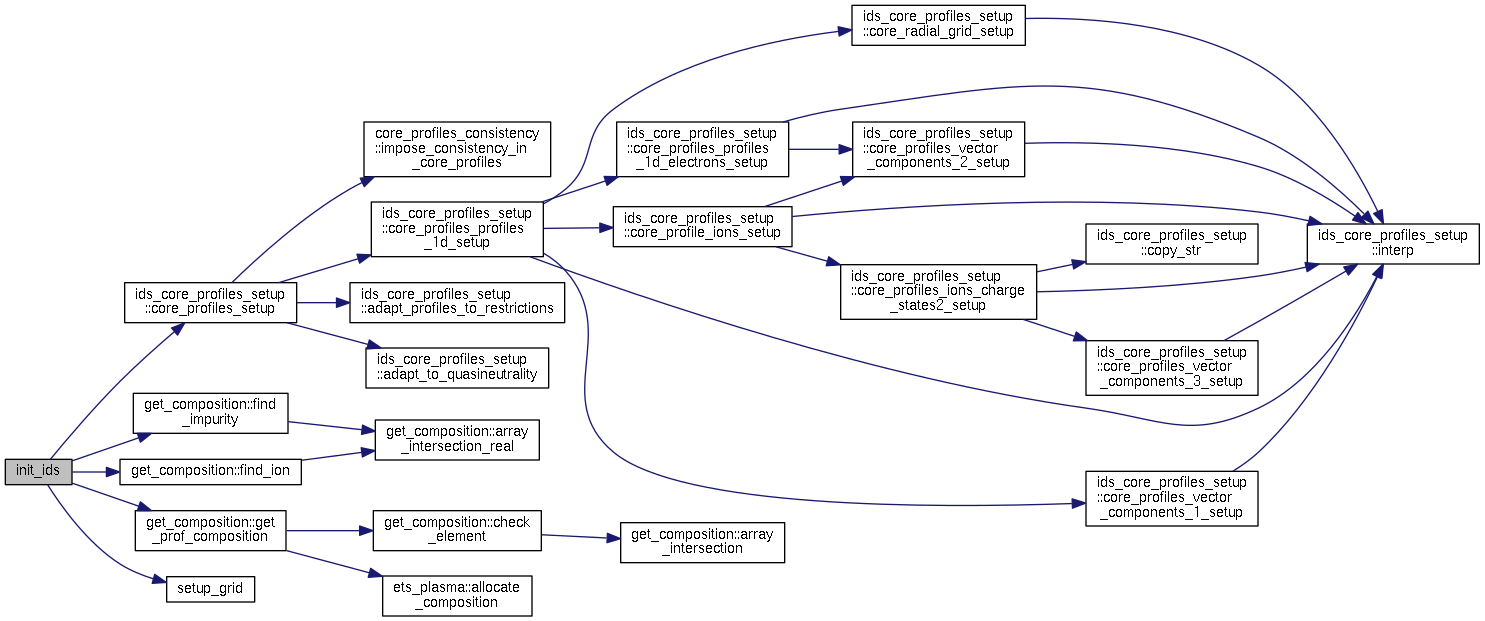

Here is the call graph for this function:

Here is the caller graph for this function:

subroutine ets_init::setup_grid	(	type (type_grid_settings), intent(in)	GRID_SETTINGS,
		type (ids_core_profiles), intent(in)	COREPROF_IN,
		real (ids_real), dimension(:), intent(out), allocatable	RHO_TOR_NORM
	)

Definition at line 1451 of file ets_init.f90.

Referenced by init_ids().

Here is the caller graph for this function:

subroutine ets_init::update_bc	(	real(ids_real), dimension(:), intent(in)	RHO,
		real(ids_real), dimension(:), intent(in)	PROF,
		integer, intent(in)	BND_TYPE,
		real(ids_real), intent(in)	BND_RHO,
		real(ids_real), intent(inout)	BND_VALUE
	)

Definition at line 1559 of file ets_init.f90.

Referenced by update_equations().

Here is the caller graph for this function:

subroutine ets_init::update_equations	(	type (plasma_profiles), intent(inout)	PROFILES,
		type (ids_core_profiles), intent(in)	COREPROF,
		type (ids_equilibrium), intent(in)	EQUILIBRIUM
	)

Definition at line 1496 of file ets_init.f90.

References update_bc().

Referenced by ets_init().

Here is the call graph for this function:

Here is the caller graph for this function:

subroutine ets_init::validate_equation	(	type (ids_core_profiles), intent(in)	coreprof_in,
		type (plasma_profiles), intent(in)	profiles,
		type(type_grid_settings), intent(in)	grid_settings,
		integer, intent(in)	solver_index,
		integer, intent(out)	output_flag,
		character(*), intent(inout)	output_message
	)

Verify that the boundary conditions are set up correctly. In particular, check that whenever you are predicting any density equation, then quasi-neutrality is set for at least one plasma species (ions or electrons).

Definition at line 1048 of file ets_init.f90.

References ets_plasma::bc_type_to_computation_mode_name().

Referenced by ets_init().

Here is the call graph for this function:

Here is the caller graph for this function:

subroutine ets_init::validate_equilibrium	(	type (ids_equilibrium), intent(in)	EQUILIBRIUM_IN,
		integer, intent(inout)	OUTPUT_FLAG,
		character(*), intent(inout)	OUTPUT_MESSAGE
	)

Definition at line 1167 of file ets_init.f90.

Referenced by ets_init().

Here is the caller graph for this function:

subroutine ets_init::validate_profiles	(	type (ids_core_profiles), intent(in)	COREPROF_IN,
		integer, intent(inout)	OUTPUT_FLAG,
		character(*), intent(inout)	OUTPUT_MESSAGE
	)

Definition at line 1123 of file ets_init.f90.

Referenced by ets_init().

Here is the caller graph for this function:
