solution10.f90 File Reference

Go to the source code of this file.

Data Types
module	cos_transportdata

Functions/Subroutines
subroutine	solution10 (SOLVER, ifail)
	This subroutine is prepared to solve single transport equation in standardised form adopted by the ETS. More...
subroutine	derivn10 (N, X, Y, DY1)
	These subroutines calculate first and second derivatives, DY1 and DY2, of function Y respect to argument X. More...
subroutine	cos_zconversion (e, nbrho)
	These subroutines correct the central value (if not finite value) More...
subroutine	cos_pde1solver (f_in, fp_in, mata_in, matb_in, matc_in, matd_in, matap_in, matbp_in, matcp_in, matdp_in, dimk_in, dimn_in, dimm_in, dx_in, dt_in, sca_f_in, T0_in, T1_in, V0_in, V1_in, mode_in, dfpdx_in, dfpdx2_in)
subroutine	build_matcoo (matp, option, k, counter, counteri, counterj)
subroutine	solvepde1d
integer function	condlimord2_k1 (interpretatif)
integer function	condlimord2_kk (interpretatif)
subroutine	condlimord1_k1
subroutine	condlimord1_kk

Function/Subroutine Documentation

subroutine build_matcoo	(	real(kind=8), dimension(dimk,dimm,dimm)	matp,
		integer, intent(in)	option,
		integer, intent(in)	k,
		integer, intent(inout)	counter,
		integer, intent(inout)	counteri,
		integer, intent(inout)	counterj
	)

Definition at line 774 of file solution10.f90.

Referenced by cos_pde1solver().

Here is the caller graph for this function:

subroutine condlimord1_k1

(

)

Definition at line 1124 of file solution10.f90.

Referenced by cos_pde1solver().

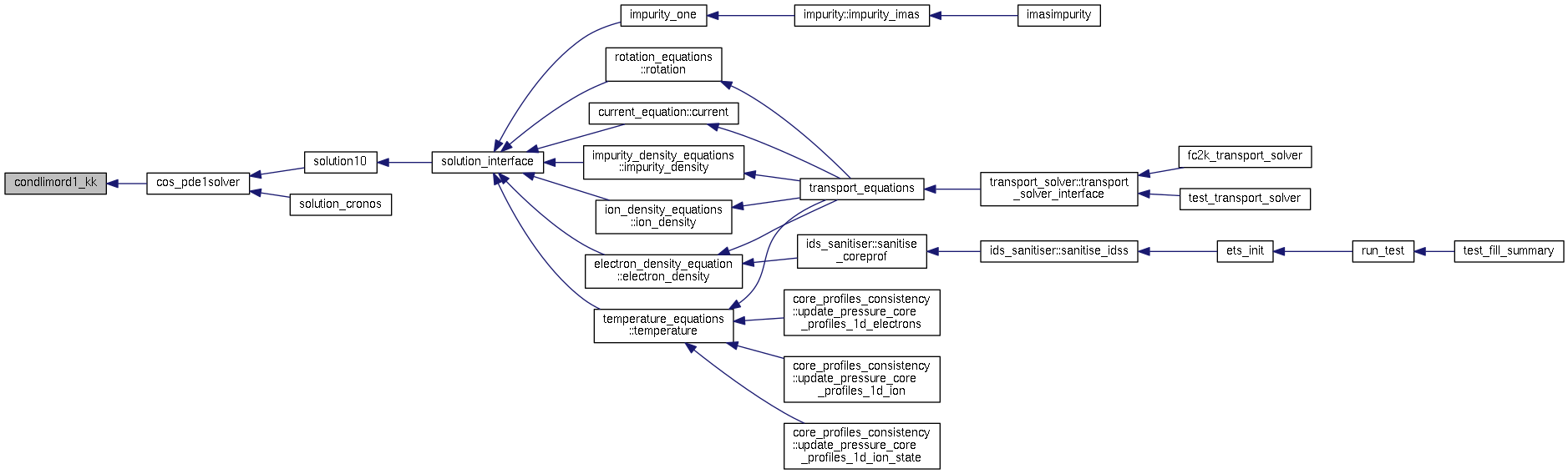

Here is the caller graph for this function:

subroutine condlimord1_kk

(

)

Definition at line 1171 of file solution10.f90.

Referenced by cos_pde1solver().

Here is the caller graph for this function:

integer function condlimord2_k1

(

integer, intent(in)

interpretatif

)

Definition at line 886 of file solution10.f90.

Referenced by condlimord2_k1(), and cos_pde1solver().

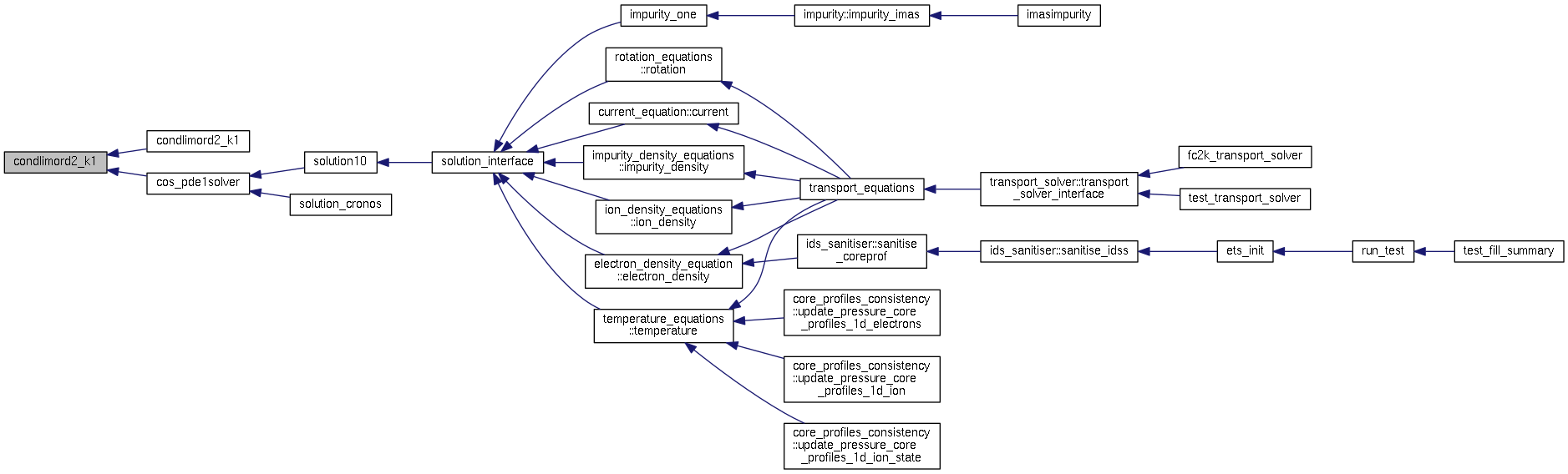

Here is the caller graph for this function:

integer function condlimord2_kk

(

integer, intent(in)

interpretatif

)

Definition at line 1006 of file solution10.f90.

Referenced by condlimord2_kk(), and cos_pde1solver().

Here is the caller graph for this function:

subroutine cos_pde1solver	(	real(kind=8), dimension(dimk_in,dimm_in), target	f_in,
		real(kind=8), dimension(dimk_in,dimm_in), target	fp_in,
		real(kind=8), dimension(dimk_in,dimm_in,dimm_in), target	mata_in,
		real(kind=8), dimension(dimk_in,dimm_in,dimm_in), target	matb_in,
		real(kind=8), dimension(dimk_in,dimm_in,dimm_in), target	matc_in,
		real(kind=8), dimension(dimk_in,dimm_in), target	matd_in,
		real(kind=8), dimension(dimk_in,dimm_in,dimm_in), target	matap_in,
		real(kind=8), dimension(dimk_in,dimm_in,dimm_in), target	matbp_in,
		real(kind=8), dimension(dimk_in,dimm_in,dimm_in), target	matcp_in,
		real(kind=8), dimension(dimk_in,dimm_in), target	matdp_in,
		integer, intent(in)	dimk_in,
		integer, intent(in)	dimn_in,
		integer, intent(in)	dimm_in,
		real(kind=8), intent(in), target	dx_in,
		real(kind=8), intent(in), target	dt_in,
		real(kind=8), intent(in), target	sca_f_in,
		real(kind=8), dimension(2,dimm_in,3), target	T0_in,
		real(kind=8), dimension(2,dimm_in,3), target	T1_in,
		real(kind=8), dimension(2,dimm_in), target	V0_in,
		real(kind=8), dimension(2,dimm_in), target	V1_in,
		real(kind=8), dimension(dimm_in)	mode_in,
		real(kind=8), dimension(dimk_in,dimm_in), optional, target	dfpdx_in,
		real(kind=8), dimension(dimk_in,dimm_in), optional, target	dfpdx2_in
	)

Definition at line 407 of file solution10.f90.

References build_matcoo(), condlimord1_k1(), condlimord1_kk(), condlimord2_k1(), condlimord2_kk(), and solvepde1d().

Referenced by solution10(), and solution_cronos().

Here is the call graph for this function:

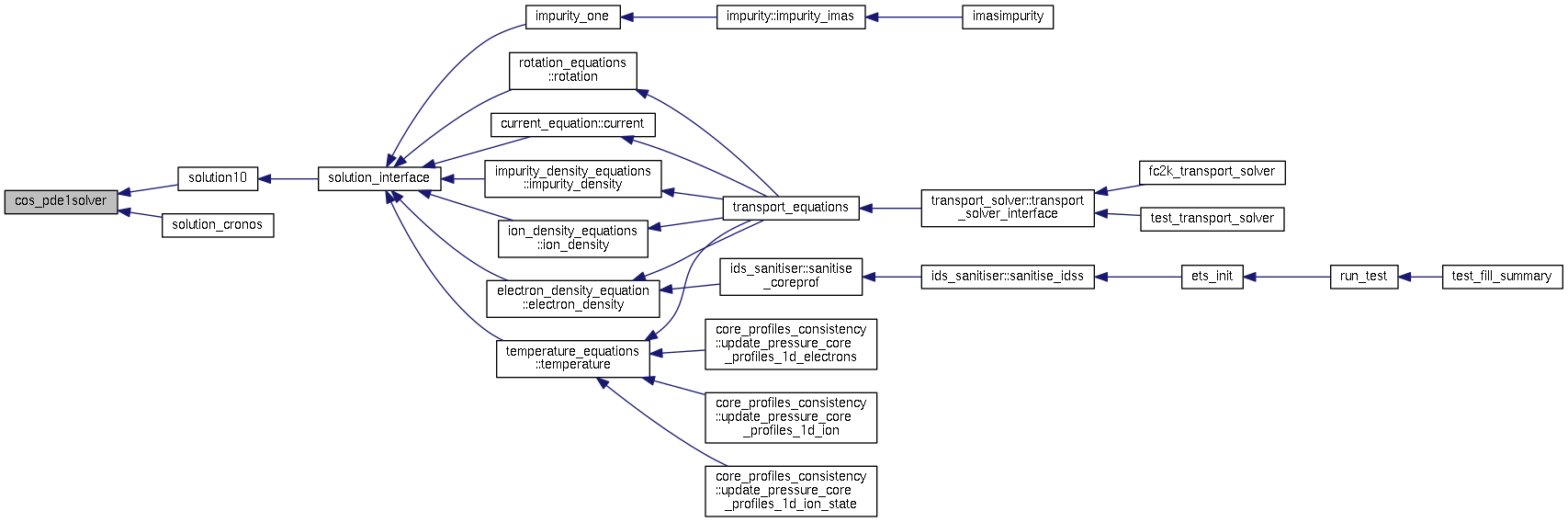

Here is the caller graph for this function:

subroutine cos_zconversion	(	real(dp), dimension(nbrho)	e,
		integer, intent(in)	nbrho
	)

These subroutines correct the central value (if not finite value)

Definition at line 342 of file solution10.f90.

Referenced by solution10(), and solution_cronos().

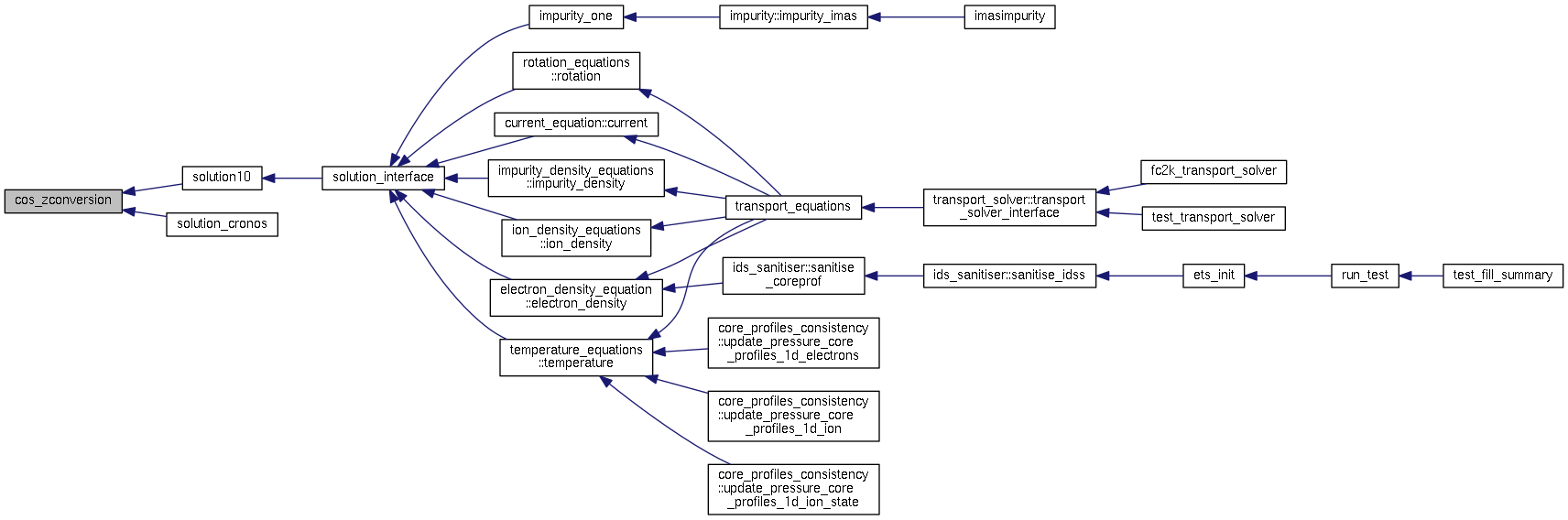

Here is the caller graph for this function:

subroutine derivn10	(	integer	N,
		real (ids_real), dimension(n)	X,
		real (ids_real), dimension(n)	Y,
		real (ids_real), dimension(n)	DY1
	)

These subroutines calculate first and second derivatives, DY1 and DY2, of function Y respect to argument X.

Author

M.Tokar, D.Kalupin

Version

"$Id: solution10.F90 868 2010-09-16 09:43:49Z coster $"

Definition at line 306 of file solution10.f90.

Referenced by solution10().

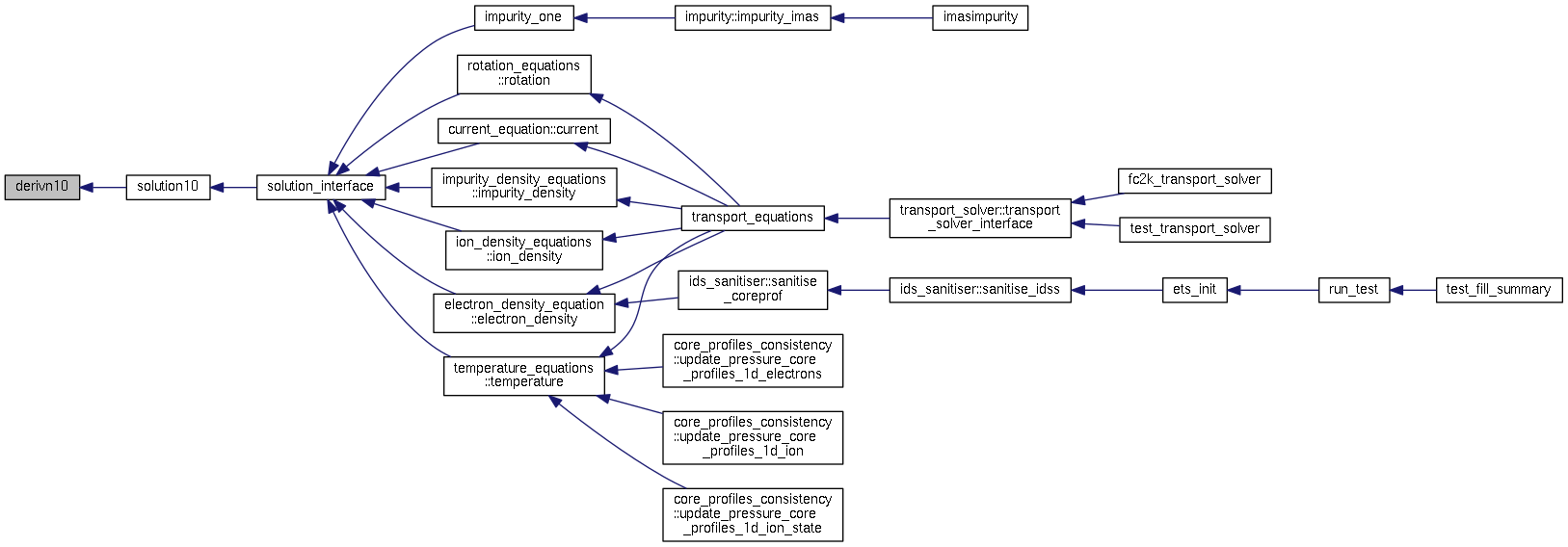

Here is the caller graph for this function:

subroutine solution10	(	type (solver_io), intent(inout)	SOLVER,
		integer, intent(inout)	ifail
	)

This subroutine is prepared to solve single transport equation in standardised form adopted by the ETS.

Author

V. Basiuk, Ph Huynh, J.F. Artaud

Version

"$Id: solution10.F90 868 2010-09-16 09:43:49Z coster $"

Definition at line 9 of file solution10.f90.

References cos_pde1solver(), cos_zconversion(), and derivn10().

Referenced by solution_interface().

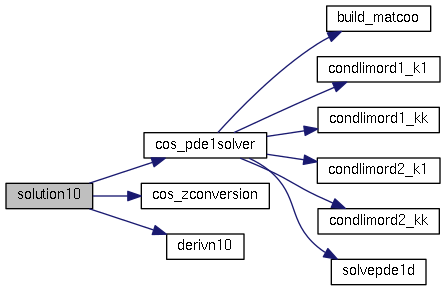

Here is the call graph for this function:

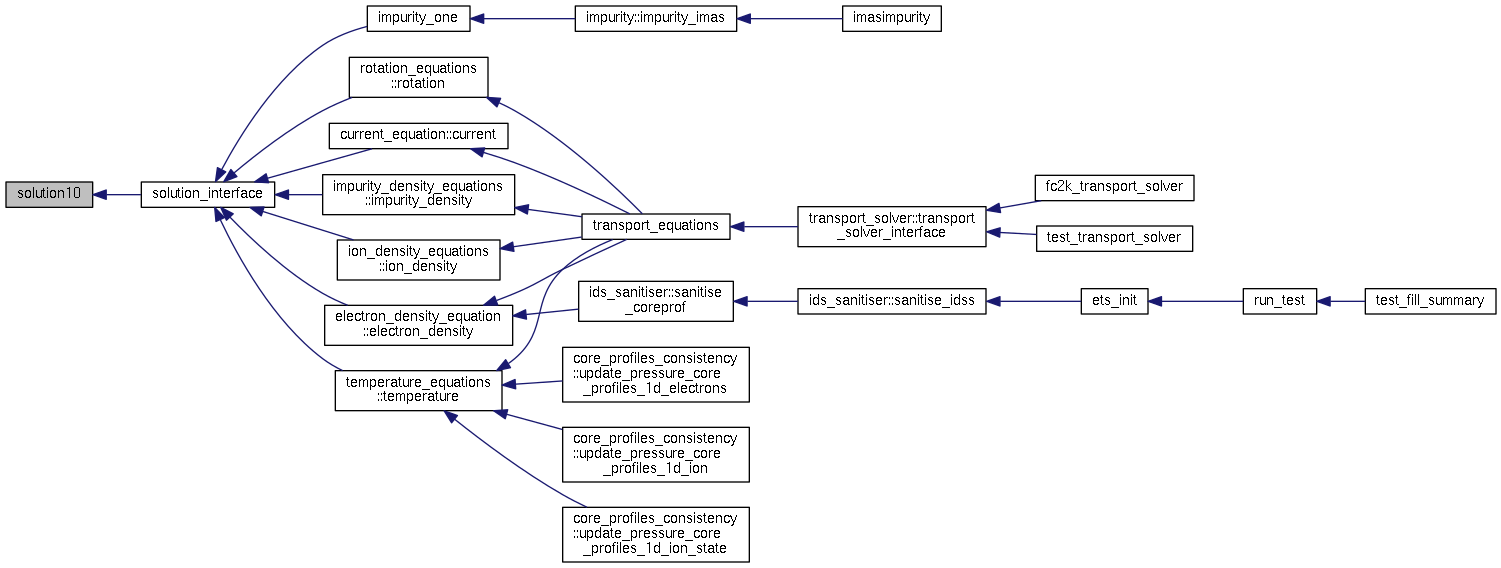

Here is the caller graph for this function:

subroutine solvepde1d

(

)

Definition at line 814 of file solution10.f90.

Referenced by cos_pde1solver().

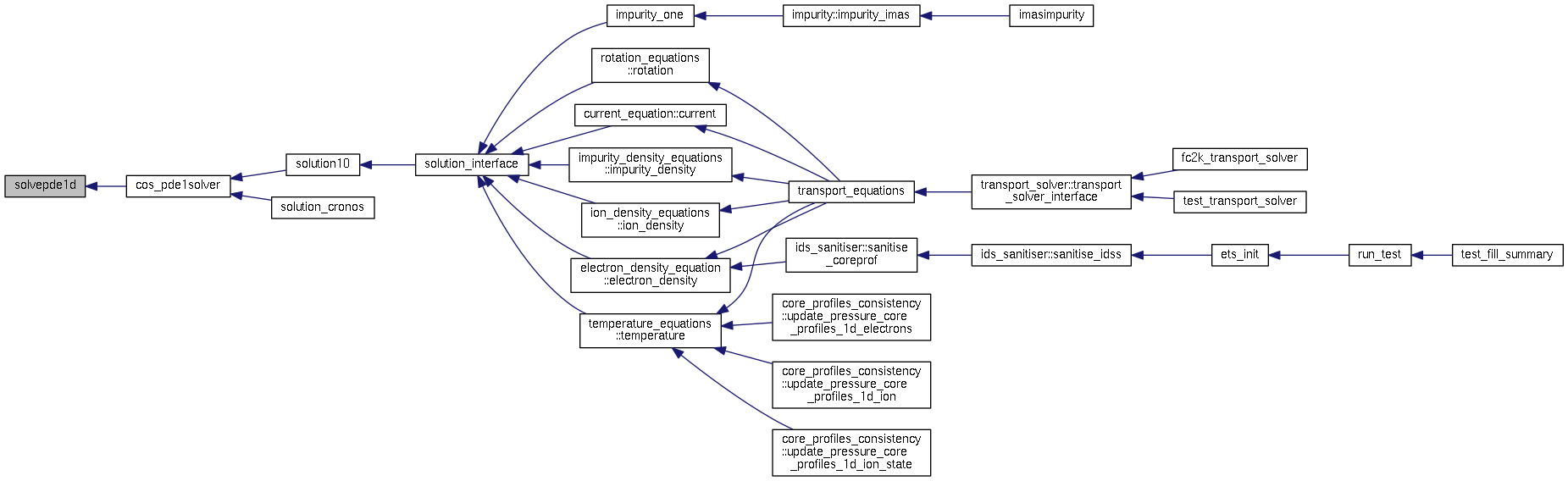

Here is the caller graph for this function:
