This module provide routine to ensure consistency between the equilibrium and core_profiles IDSs, by updating the equilibrium with data from core_profiles. More...

Data Types
type	control_parameters
	Derived type including control parameters. More...

type	diagnostic
	Derived type used to pass error information. More...

Public Member Functions
subroutine	equil_input (COREPROF_IN, EQUILIBRIUM_IN, EQUILIBRIUM_OUT, code_parameters, DIAG)
	This subroutine generates and equilibrium IDS, EQUILIBRIUM_OUT, that is a copy of the input EQUILIBRIUM_IN, except for data related to the plasma current, which is provided from the input COREPROF_IN. More...

subroutine	ets_input (EQUILIBRIUM_IN, COREPROF_OUT)
	This routine updates the q-profile in the COREPROF_OUT. Created for V&V between ETS and ASTRA. More...

subroutine	assign_xml_parameters (codeparam_string, param_struct, DIAG)
	Parse xml code-parameters from codeparam_string into the derived type param_struct. More...

LOGICAL function	finite_array (arg)
	Function finite_array return true only if the input arg is associate and contains non-zero values. More...

Public Attributes
integer, parameter	interpolation_coordinate_rho_tor = 0
	Defines the interger used to specify interpolation in rho_tor. More...

integer, parameter	interpolation_coordinate_rho_tor_norm = 1
	Defines the interger used to specify interpolation in rho_tor_norm. More...

integer, parameter	interpolation_coordinate_rho_tor_norm_square = 2
	Defines the interger used to specify interpolation in rho_tor_norm**2. More...

Detailed Description

This module provide routine to ensure consistency between the equilibrium and core_profiles IDSs, by updating the equilibrium with data from core_profiles.

Author: D.Kalupin, D. Coster, J.Ferreira, R. Coelho, T. Jonsson

Definition at line 10 of file equilibrium_input.f90.

Member Function/Subroutine Documentation

subroutine equilibrium_input::assign_xml_parameters	(	character(len=132), dimension(:), intent(in)	codeparam_string,
		type(control_parameters), intent(out)	param_struct,
		type(diagnostic)	DIAG
	)

Parse xml code-parameters from codeparam_string into the derived type param_struct.

 Developers:   Thomas Jonsson
 Contacts:     johnso@kth.se

Parameters

[in]	codeparam_string	xml string with input paramters.
[out]	param_struct	Derived type including controll parameters.
	diag	Output error information (flag and message).

Definition at line 830 of file equilibrium_input.f90.

Referenced by equil_input().

Here is the caller graph for this function:

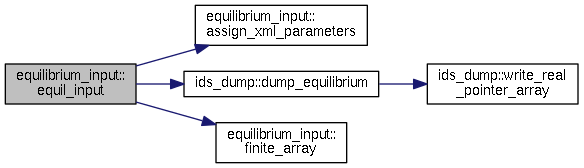

subroutine equilibrium_input::equil_input	(	type (ids_core_profiles), intent(in)	COREPROF_IN,
		type (ids_equilibrium), intent(in)	EQUILIBRIUM_IN,
		type (ids_equilibrium), intent(out)	EQUILIBRIUM_OUT,
		type (ids_parameters_input), intent(in)	code_parameters,
		type (diagnostic), intent(out)	DIAG
	)

This subroutine generates and equilibrium IDS, EQUILIBRIUM_OUT, that is a copy of the input EQUILIBRIUM_IN, except for data related to the plasma current, which is provided from the input COREPROF_IN.

The following fields are updated from COREPROF_IN:

(a) psi
(b) q
(c) j_total
(d) j_tor
(e) pressure

The data used to fill the pressure field depend on the data available in the COREPROF_IN. The pressure in EQUILIBRIUM_OUT is constructed from following priority list:

Use COREPROF_INprofiles_1d(1)pressure_perpendicular
Use COREPROF_INprofiles_1d(1)pressure_thermal and ignore the fast ion pressure
Sum COREPROF_INprofiles_1d(1)electronspressure and COREPROF_INprofiles_1d(1)ion(IION)pressure for all ions IION.
Construct the pressure from thermal densities and temperatures of both ions and electrons
No method of constructing the pressure was found, set pressure to zero.

In addition, the fields rho_tor and rho_vol_norm have are added in EQUILIBRIUM_OUT in cases the data is available to fill them from either EQUILIBRIUM_IN or COREPROF_IN.

Source:       ---
Developers:   D.Kalupin
Contacts:     D.Kalupin@fz-juelich.de

Comments:     created for V&V between ETS and ASTRA

Modified:     D. Coster/J.Ferreira (CPOs)
              R. Coelho (conversion to IDSs)
              T. Jonsson

Todo:: Add codeparam to select either isotropic or perpendicular pressure.

Parameters

[in]	equilibrium_in	input IDS with geometry quantities from previous time
[in]	coreprof_in	input IDS with plasma profiles
[out]	equilibrium_out	output IDS with geometry quantities from previous iteration
[in]	code_parameters	Code parameters from XML input
[out]	diag	output error information (flag and message)
